HYPERTEK PS: user can cross reference relative PCB at  ".\A1-SCUD1A " directory 　 產品型錄
A1-S100(YT5100)-2C_2.LB_2.1.0STD.xls 　 　 　 　 　 　 　 　 　 　 2024/07/XX
ITEM DESCRIPTION DUT Q/TY PACKAGE PIN COUNT PITCH SIZE SOCKET NO. PICTURE DRAWING PIN LIST REMARK TESTER CONFIG
QFN 　 　 　 　 　 　 　 　 　 　 　 　
1 YT5100_2C-NS6040-QFN24-3X3-LB 1X4 QFN 24 0.4/0.5 3X3 2050-SA3324QNB01F V V V SPARE 7-3 & MIX x2 & OPM x2 4 LOG
2 2C-SCUD1A-NS6040-QFN26-8X8-P0.65-LB 1X4 QFN 26 0.65 8X8 客戶自訂
(UniProbe-120-00165-001A)		 V V V SPARE 7-3 & MIX x2 LOG,LOG,MIP,MIP
3 2C-SCUD1A-NS8040-QFN28-3X3-P035-LB-G6K 1X4 QFN 28 0.35 3X3 客戶自訂
(Tai-chen,2050-SA3328QNB01F)		 V V V SPARE 7-3 & MIX x2 LOG,LOG,MIX,MIX
4 YT5100_2C-NS6K-QFN28-4X4-P0.4-128P-2MIP 1X2 QFN 28 0.4 4X4 客戶自訂
(JG-160414003)		 V V V SPARE 7-3 & MIX x2 LOG,LOG,MIP,MIP
5 2C-SCUD1A-NS6040-QFN32-2.4X5-P04-TAI-CHEN-LB 1X4 QFN 32 0.4 2.4X5 客戶自訂
(Tai-chen,2050-SA245032QNB2)		 V V V SPARE 7-3 & MIX x2 LOG,LOG,MIX,MIX
6 2C-SCUD1A-NS8K-QFN40-4X6-P0.4-LB 1X4 QFN 40 0.4 4X6 Tai-Chen 2050-SA6440QNB1F V V V SPARE 7-3 & MIX x2 & OPM x2 4 LOG
7 YT5100_2C-NS6K-QFN46-6.5X4.5-P0.4-128P-2MIP 1X2 QFN 46 0.4 6.5X4.5 客戶自訂
(JG-160412001)		 V V V SPARE 7-3 & MIX x2 LOG,LOG,MIP,MIP
8 2C-SCUD1A-NS6040-QFN48-5x5-P0.35-LB 1X4 QFN 48 0.35 5X5 客戶自訂
(JG,150213901)		 V V V SPARE 7-3 & MIX x2 & OPM x2 4 LOG
9 YT5100_2C-NS6040-QFN60-5X9-P0.4 1X4 QFN 60 0.4 5X9 客戶自訂
(Tai-chen,2050-SA5960QNB01L)		 V V V SPARE MIX x1 & OPM x1 4 LOG & 7-3
10 YT5100_2C-NS6040-QFN62-6X6-P0.35-LB 1X4 QFN 62 0.35 6X6 秋碁 A-QFN-62-0.35-6x6 V V V SPARE 7-3 & MIX x2 & OPM x2 4 LOG
11 YT5100_2C-NS6040-QFN32-40-48-P0.4-LB(TAI-CHEN) 1X4 QFN 32-40-48 0.4 4X4, 5X5, 6X6 　 　 V V QFN32 & QFN40 & QFN48
SPARE MIX x2 & OPM x2		 4 LOG & 7-3
12 YT5100-2C-NS6040-QFN-40-32-24-05 1X4 QFN 40-32-24 0.5 5X5 客戶自訂-GTK V V V QFN24 & QFN32 & QFN40
SPARE 7-3 & LOGx2 & OPM x2		 LOG,LOG,MIX,MIX
13 2C-SCUD1A-192P-MIX-NS6K-QFN88-80-72-P0.4-LB 1X2 QFN 72-80-88 0.4 10X10 客戶自訂-GTK
(Tai-chen,2050-SA101088QNB1F)		 V V V QFN72 & QFN80 & QFN88
SPARE 7-3 & MIX x2 & OPM x2		 LOG,LOG,LOG,MIX
　 　 　 　 　 　 　 　 　 　 　 　 　
Many in one socket solution 　 　 　 　 　 　 　 　 　 　 　
1 2C-SCUD1A-NS6040-QFN20-28-36-P0.35-LB(JG) 1X4 QFN 20-28-36 0.35 3X3, 4X4 JG QFN 20-28-26-P0.35 V V V SPARE MIX x1 & OPM x1 4 LOG
2 2C-SCUD1A-NS6040-QFN24-32-40-P0.35-LB(JG) 1X4 QFN 24-32-40 0.35 3X3, 4X4, 5X5 JG QFN 24-32-40-P0.35 V V V SPARE MIX x1 & OPM x1 4 LOG
3 2C-SCUD1A-NS6040-QFN20-28-36-44-P0.4-LB(JG) 1X4 QFN 20-28-36-44 0.4 4X4, 5X5 JG-QFN 20-28-36-44 P0.4 V V V SPARE MIX x1 & OPM x1 4 LOG
4 2C-SCUD1A-NS6040-QFN24-32-40-P0.4-LB(JG) 1X4 QFN 24-32-40 0.4 4X4, 5X5 JG QFN 24-32-40-P0.4 V V V SPARE MIX x1 & OPM x1 4 LOG
5 2C-SCUD1A-NS6040-QFN40-48-56-64-P0.4-LB(JG) 1X4 QFN 40-48-56-64 0.4 5X5, 6X6, 7X7, 8X8 JG QFN 40-48-56-64-P0.4 V V V SPARE MIX x1 & OPM x1 4 LOG
6 2C-SCUD1A-NS6040-QFN44-52-60-68-P0.4-LB(JG) 1X4 QFN 44-52-60-68 0.4 6X6, 7X7, 8X8 JG QFN 44-52-60-68-P.4 V V V SPARE MIX x1 & OPM x1 4 LOG
7 2C-SCUD1A-NS6040-QFN16-24-32-40-P0.5-LB(JG) 1X4 QFN 16-24-32-40 0.5 3X3, 4X4, 5X5, 6X6 JG-QFN-16-24-32-40-P0.5 V V V SPARE MIX x1 & OPM x1 4 LOG
8 2C-SCUD1A-NS6040-QFN20-28-36-44-P0.5-LB(JG) 1X4 QFN 20-28-36-44 0.5 4X4, 5X5, 6X6, 7X7 JG-QFN 20-28-36-44-P0.5 V V V SPARE MIX x1 & OPM x1 4 LOG
9 2C-SCUD1A-NS6040-QFN40-48-56-64-P0.5-LB(JG) 1X4 QFN 40-48-56-64 0.5 6X6, 7X7, 8X8, 9X9 JG-QFN 40-48-56-64-P0.5 V V V SPARE MIX x1 & OPM x1 4 LOG
10 2C-SCUD1A-NS6040-QFN44-52-60-68-P0.5-LB(JG) 1X4 QFN 44-52-60-68 0.5 7X7, 8X8, 10X10 JG QFN 44-52-6-68-P0.5 V V V SPARE MIX x1 & OPM x1 4 LOG
PS: item1~8 all follow JG socket standard ( socket screw hole,4 EA = 25.4mmx25.4mm  , guide pin,4EA= 34mmx34mm)

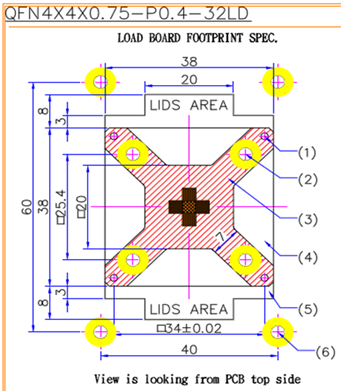

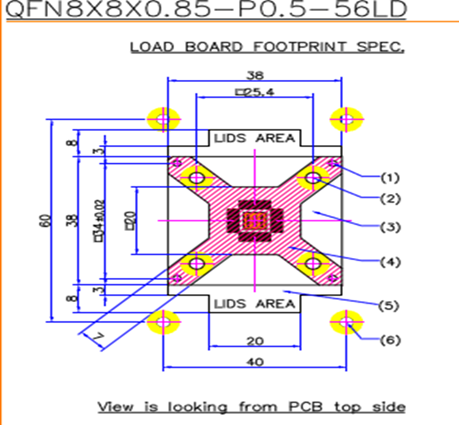

for example as below
